Deploying Lenovo Device Manager Agent in Intune

Deploying Lenovo Device Manager Agent in Intune

Creating an Intune application to deploy the Lenovo Device Manager Agent in Intune

1. Download the LDM Agent and set the expiry date of the agent.
a. In the LDM console, navigate to Device Management > Devices.
b. Click on the plus symbol + , located to the right of the name of the page (Devices).

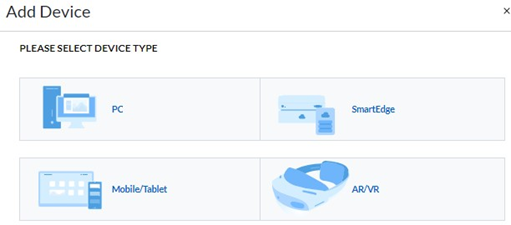

c. Select the device type.

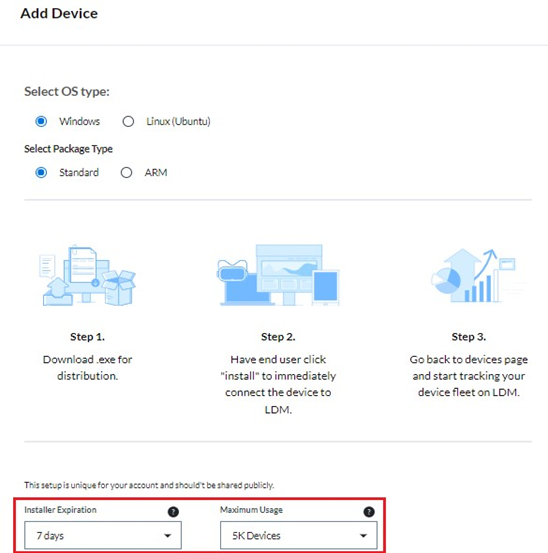

d. Select the OS type, then change the Installer Expiration and Maximum Usage options.


i. Change the Installer Expiration from 7 Days to 365 Days.
ii. Change the Maximum Usage from 5K Devices to 10K Devices .

e. Click Download Installer and copy it to a temporary location. For this example we are using “C:\Temp\LDM”.

2. Create an intunewin package, which then can be imported into Intune as a Windows app (Win32) application.
a. Navigate to https://github.com/Microsoft/Microsoft-Win32-Content-Prep-Tool and download the IntuneWinAppUtil.exe file.
b. Copy the below files to a temp folder. For this examle we are using “C:\Temp\LDM”
i. IntuneWinAppUtil.exe
ii. UDCsetup.exe (this can be downloaded from the Lenovo Device Manager portal)
c. Open CMD as an admin and navigate to “C:\Temp\LDM”, then run the following command to create the intunewin package:
​IntuneWinAppUtil.exe -c "C:\Temp\LDM" -s "UDCsetup.exe" -o "C:\Temp\LDM" -q

3. Add the package into Intune.
a. In Microsoft Endpoint Manager admin center , navigate to Apps > All apps
b. Click Add.
c. From the App type dropdown, select Windows app (Win32)
d. Click Select.

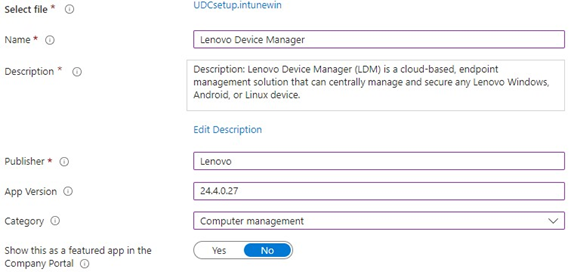

e. At the App information stage, import the UDCsetup.intunewin package created.




Name: Lenovo Device Manager
Description: Lenovo Device Manager (LDM) is a cloud-based, endpoint management solution that can centrally manage and secure any Lenovo Windows, Android, or Linux device.
Publisher: Lenovo
App Version: 24.4.0.27
Category: Computer management

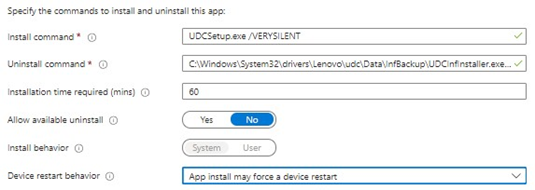

f. At the Program stage, set the below commands for the Install and Uninstall commands.
Install command: /verysilent /Norestart
Uninstall Command: C:\Windows\System32\drivers\Lenovo\udc\Data\InfBackup\UDCInfInstaller.exe -uninstall

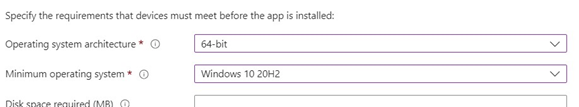

 g. At the Requirements stage, set the below options.



h. At the Detection rules stage, select Manually configure detection rules, then click Add selecting Rule type to File.



Path: C:\Windows\System32\drivers\Lenovo\udc\Service
File or folder: UDClientService.exe
Detection method: File or folder exists
i. Complete the remainder of the Wizard.
